NIGHTINGALE I
NIGHTINGALE I
NIGHTINGALE I
Frequency: 25GHz to 29GHz
Beamwidth: 8 deg (Minimum, w/ one tile)
Instantaneous Bandwidth/Channel: 200MHz Tx
100MHz Rx
EIRP @ P1dB: 30 dBW
Input Voltage: 24 to 36V
Beamwidth: 8 deg (Minimum, w/ one tile)
Instantaneous Bandwidth/Channel: 200MHz Tx
100MHz Rx
EIRP @ P1dB: 30 dBW
Input Voltage: 24 to 36V
CesiumAstro, Inc.
Multi-Component
Ka-Band High- Speed Dowling Payload
Total System Mass: <1.2kg (configuration dependent)

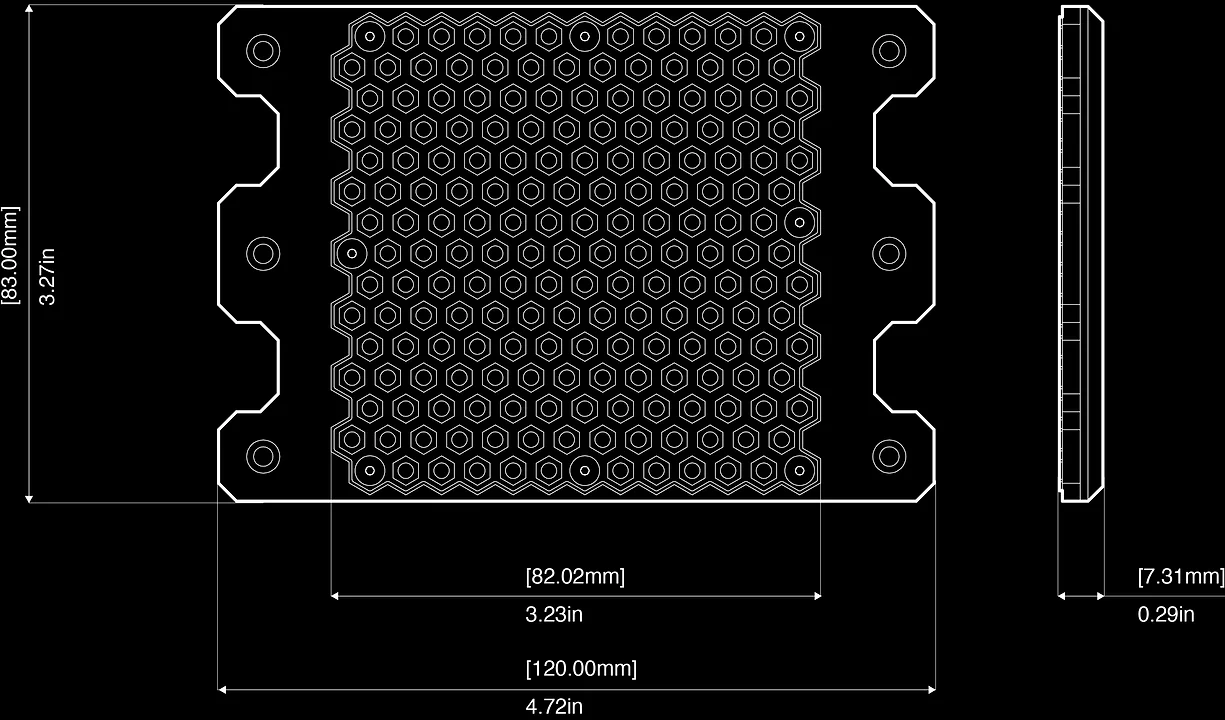

120 x 83 x 7mm packaged (APA-1AT1) 50 x 84 x 13mm (SDR,SBC,PCU, UDC)
Baseplate Operating Temperature: -24 to 61C
